Ceramic Tile Packaging Production Line Solutions
- Modular diverting, cartoning, edge protection, and sealing line
- Reference solutions for common 300 × 400 and 300 × 600 mm tiles
- Configured around packaging materials, stack pattern, and plant layout
-
Estimated Delivery:Jul 30 - Aug 03

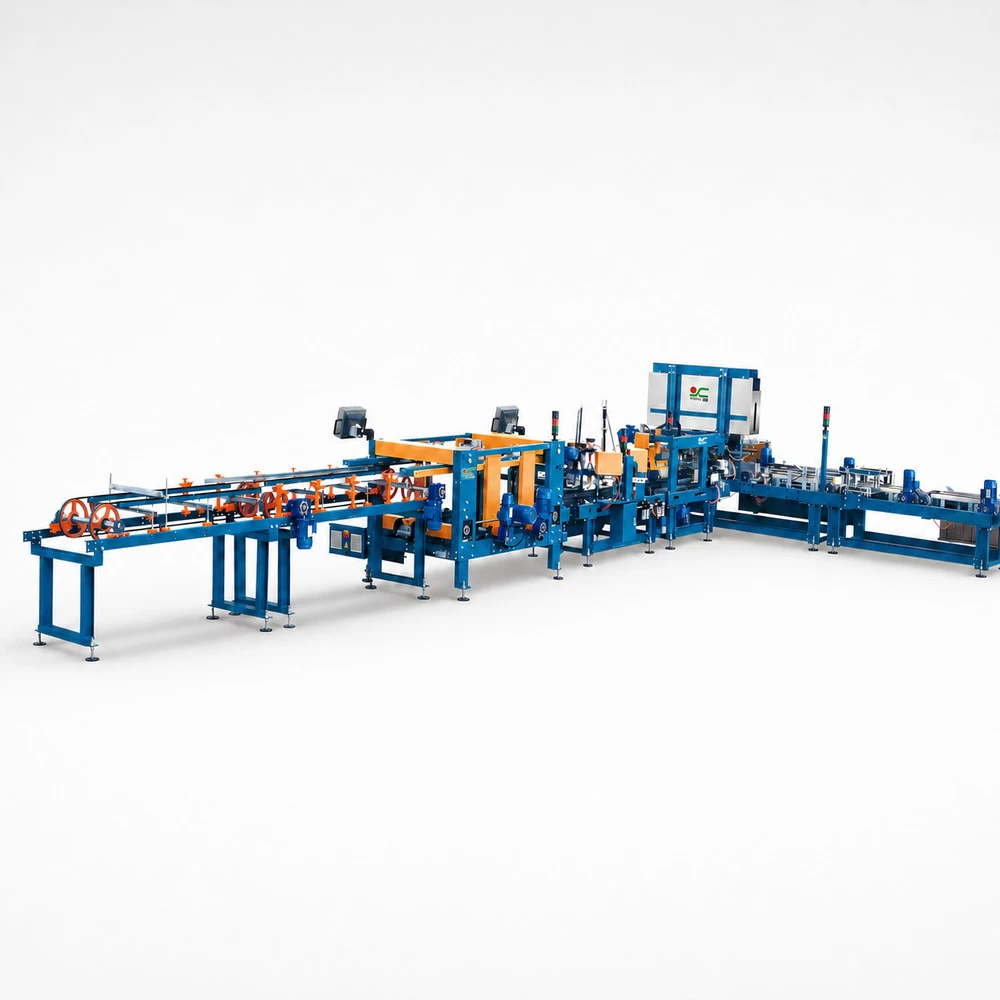

Ceramic Tile Packaging Production Line Solutions
The ceramic tile packaging production line is a modular end-of-line solution for diverting, edge protection, cartoning, corner placement, sealing, and related handling steps. Individual modules can be combined around the buyer’s tile format, stack pattern, cardboard style, adhesive method, inspection plan, and palletizing process. The source catalog presents reference equipment for 300 × 400 mm and 300 × 600 mm working formats, with several modules rated at up to eight tiles per minute. Final capacity, line length, packaging-material use, and interfaces depend on the selected modules and the incoming tile flow.

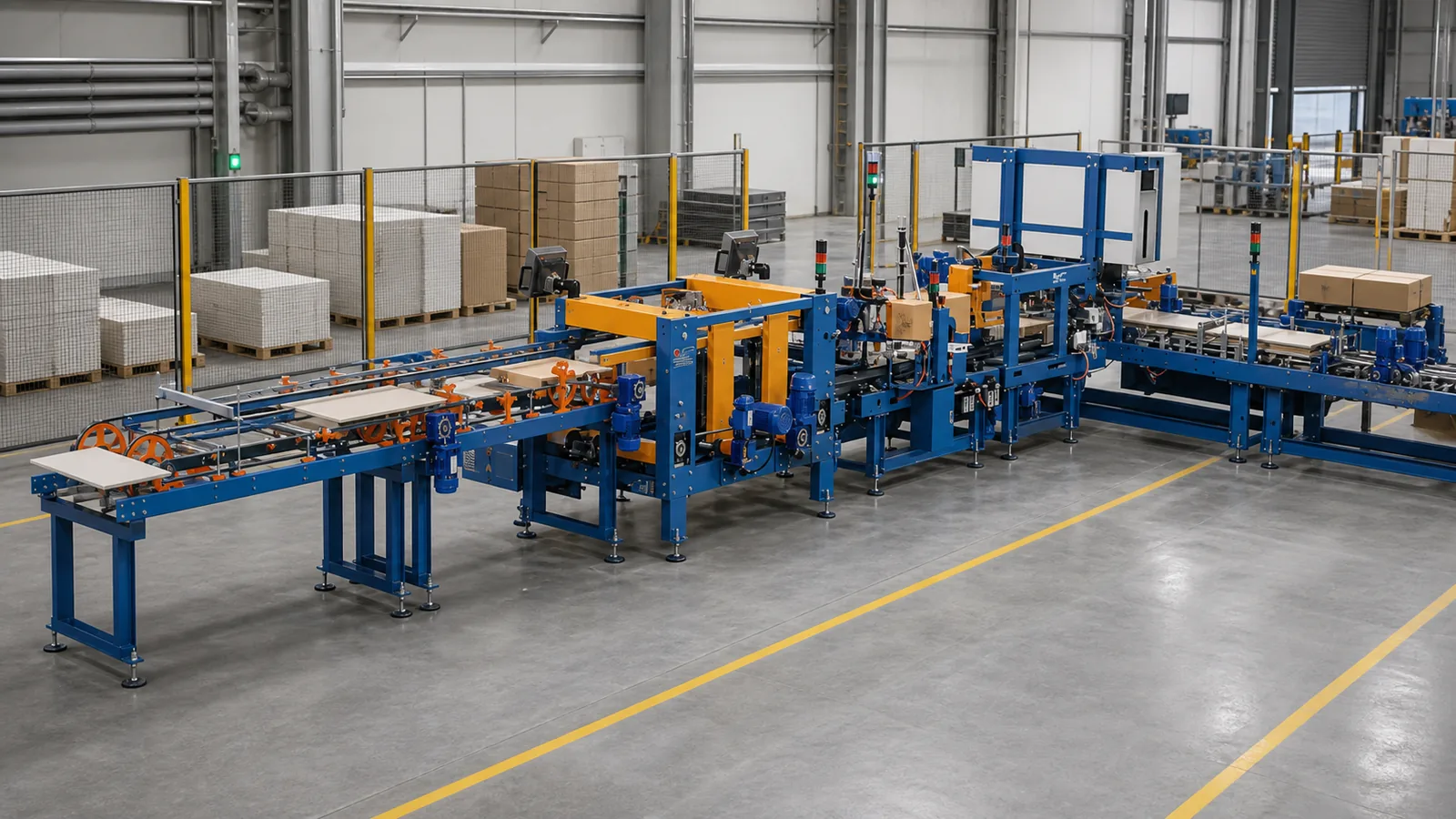

Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Modular architecture lets buyers select only the packaging steps their process requires.
Diverting conveyors organize product flow before the packaging cell.
Cartoning, edging, corner protection, placement, and sealing modules can be combined.
Hot-melt adhesive equipment supports compatible carton-forming processes.
Reference modules are available for common 300 × 400 mm and 300 × 600 mm formats.
Line controls coordinate sensors, stops, transfers, and downstream handoffs.
Layout can be engineered around existing sorting, stacking, or palletizing equipment.
Product Specifications
| Module | Reference data |
|---|---|
| Diverting conveyor | 2,000 × 1,000 × 1,025 mm; 0.55 kW |
| Hot-melt adhesive machine | 2 channels; 2 nozzles; 4 kW |
| Edging machine | 1.22 kW; 0.4–0.7 bar; up to 8 tiles/min; 1,600 × 1,860 × 1,850 mm |
| Packing and cartoning machine | 0.92 kW; 0.4–0.7 bar; up to 8 tiles/min; 2,650 × 1,250 × 1,750 mm |
| Corner protector machine | 300 × 600 mm reference range; 3.68 kW; 0.4–0.7 bar; cataloged 65 tiles/min; 3,000 × 2,050 × 1,500 mm |
| Corner placement machine | 300 × 450 / 300 × 600 mm; 0.93 kW; 0.4–0.7 bar; up to 8 tiles/min; 1,850 × 1,450 × 1,550 mm |
| Sealing and edge reduction machine | 0.74 kW; 0.4–0.7 bar; up to 8 tiles/min; 2,050 × 1,200 × 950 mm |
| Reference complete line | Approximately 9.85 m long; 12.1 kW installed power |
The corner-protector module has a different cataloged component rate from the complete packaging flow. Confirm the balanced line rate using the selected module sequence, tile stack, and carton process.
Applications
- End-of-line packaging for ceramic wall and floor tiles
- Carton forming, edge protection, corner protection, and sealing
- Lines connected to sorting, stacking, inspection, or palletizing
- Plants upgrading individual manual packaging steps in phases
Customization Options
- Tile dimensions, thickness, stack height, orientation, and incoming spacing
- Carton blank or tray style, board grade, print-free or branded packaging
- Edge protector, corner protector, adhesive, strap, and seal requirements
- Module sequence, conveyor height, buffers, reject handling, and line layout
- Electrical standard, controls, guarding, documentation, and shipping plan
Packaging & Shipping
Each module is labeled, protected, and packed according to its installation position in the approved line. Conveyors, adhesive equipment, carton mechanisms, guards, controls, and spare assemblies are secured separately where needed, with the container plan based on the final module sequence.
Manufacturing & Quality Control
- Packaging-material and tile-stack review before mechanical setup
- Module alignment, conveyor tracking, sensor, stop, and transfer checks
- Carton forming, adhesive placement, corner protection, and seal inspection
- Control-sequence, alarm, interlock, and emergency-stop verification
- Balanced-line trial using representative tiles and packaging materials when supplied
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on modular ceramic tile packaging line solutions with selected conveying, diverting, cartoning, protection, sealing, and downstream connection modules. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include ceramic tile plants and finishing lines that need repeatable package forming, product protection, and transfer. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover tile and stack range, carton or tray design, protective materials, adhesive or sealing method, line layout, buffers, controls, guarding, and connection to sorting or palletizing equipment. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for Ceramic Tile Packaging Production Line Solutions can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide tile sizes, thickness, unit weight, stack pattern, current packaging samples, carton drawings, protection and sealing materials, target output, floor plan, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Related Equipment
Browse Packaging Automation Equipment or review Full Automatic Film Applicator.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
