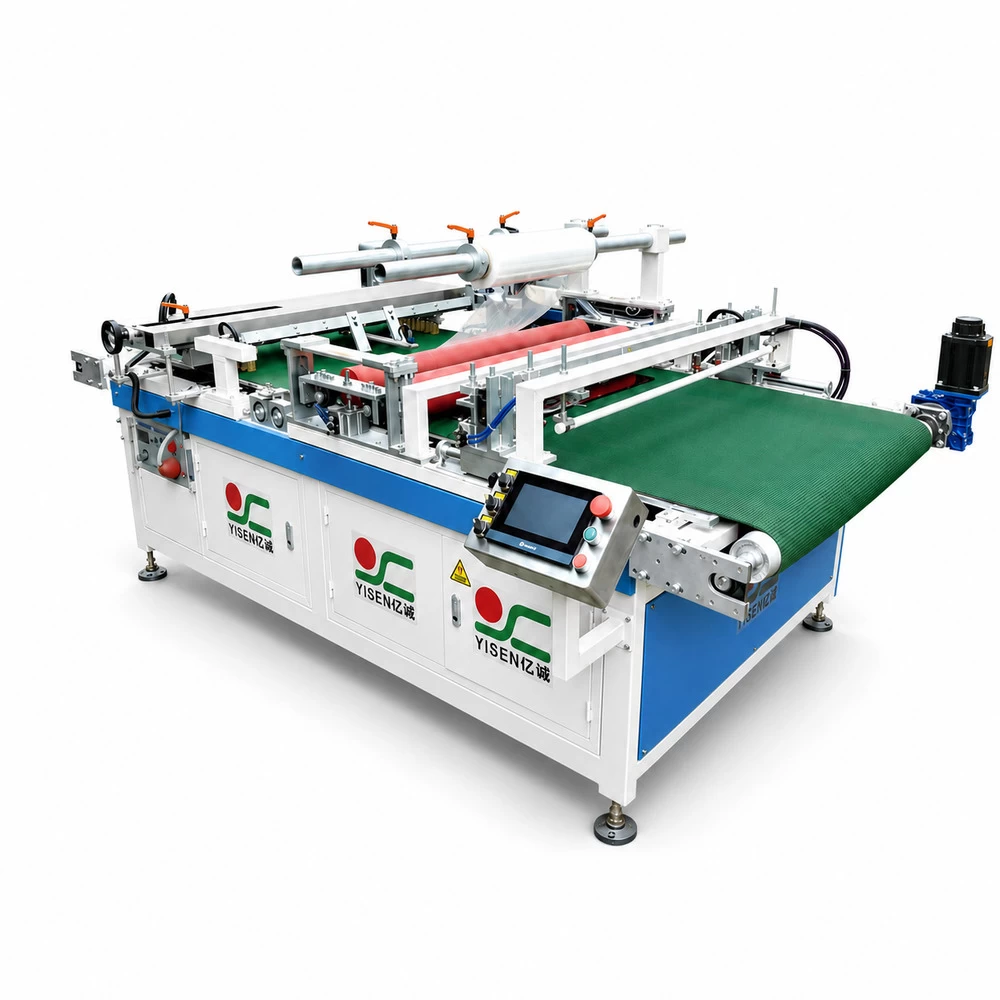

Full Automatic Film Applicator
- Automatic protective-film feeding, positioning, laminating, and cutting
- Servo-controlled film sections with two-stage glass feeding
- Hot-wire and toothed-blade reference configurations
-
Estimated Delivery:Jul 30 - Aug 03
Full Automatic Film Applicator
The full automatic film applicator feeds, positions, laminates, and cuts protective or electrostatic film on flat glass panels. It is designed to reduce repeated manual film handling while maintaining a controlled sheet path across the glass surface. The cataloged YCF10060 and YCF8080 configurations use two-stage glass feeding, servo-controlled film sections, automatic positioning, and either hot-wire or toothed-blade cutting. Machine selection depends on panel size, film type, roll dimensions, surface cleanliness, edge allowance, required cut method, line height, and the buyer’s target production flow.

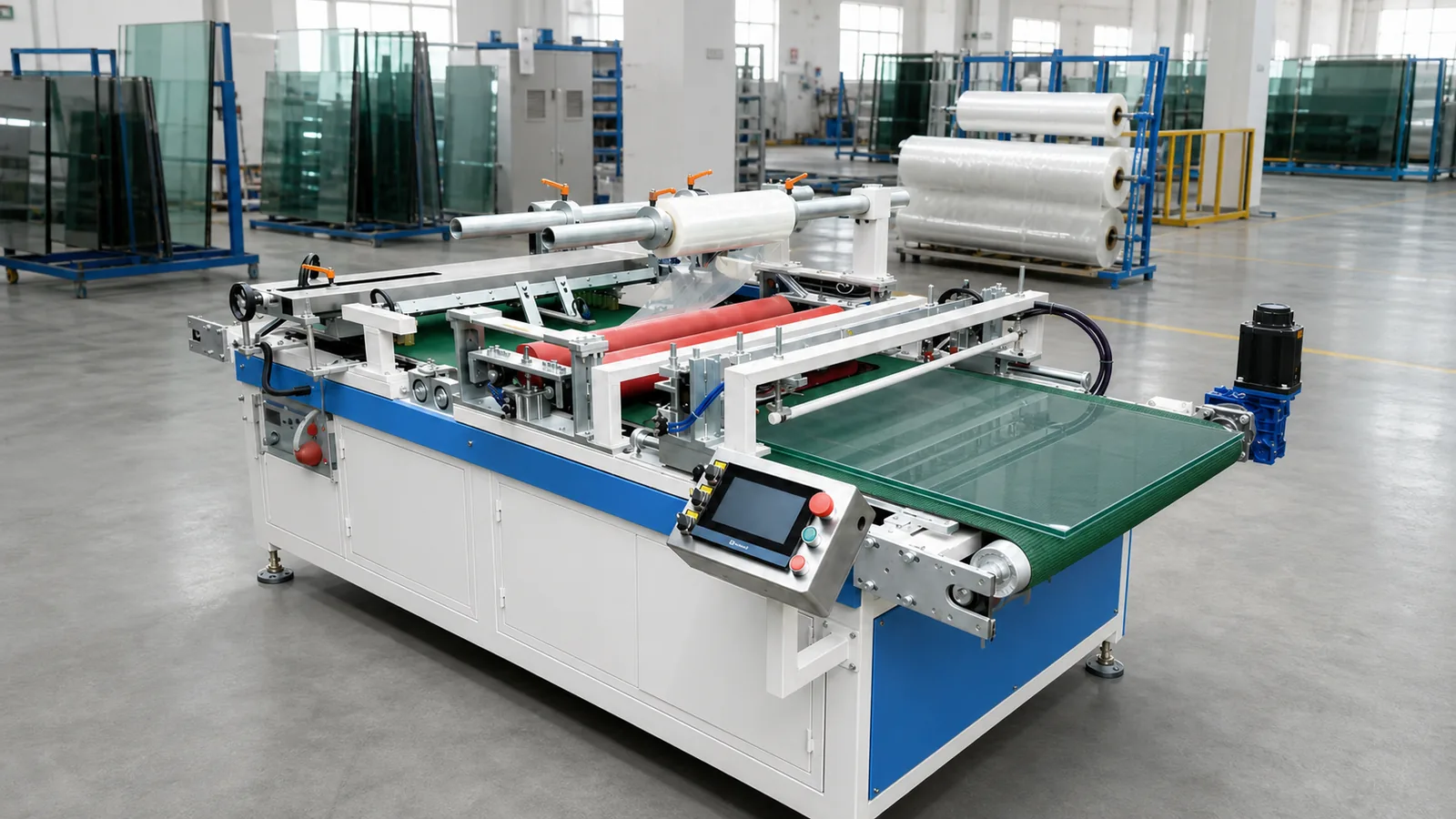

Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Automatic film feeding and lamination reduce repeated manual handling.
Two-stage glass feeding supports controlled panel spacing through the process.
Servo-controlled film sections improve repeatability of film length and positioning.
Hot-wire or toothed-blade cutting is available by cataloged model.
Automatic positioning aligns the film process with incoming flat glass.
Line connection can be reviewed for upstream cleaning and downstream packing.
Working height and format range are selected for the buyer’s plant layout.
Product Specifications
| Model | YCF10060 | YCF8080 |
|---|---|---|
| Drive | Flat belt | Cataloged conveyor drive |
| Working height | 820 mm | 870 mm |
| Cutting method | Hot wire | Toothed blade |
| Installed power | 3.35 kW | 1.5 kW |
| Air pressure | 0.6 MPa | 0.6 MPa |
| Catalog air consumption | 150 L/min | 150 L/min |
| Machine dimensions | 3,360 × 1,750 × 5,100 mm | 2,500 × 1,300 × 1,640 mm |
| Approximate machine weight | 600 kg | 600 kg |
| Reference output | 30 pcs/min for cataloged 6030 glass | 40 pcs/min for cataloged 6030 glass |
The catalog uses internal size codes for compatible glass formats. Provide actual minimum and maximum dimensions in millimeters so the working range can be confirmed without relying on those codes.
Applications
- Protective-film application before storage, transport, or downstream handling
- Flat glass used in appliances, furniture, interiors, and fabricated panels
- Lines requiring consistent film length and automatic cutting
- Packaging cells connected to glass cleaning or inspection equipment
Customization Options
- Minimum and maximum glass size, thickness, and incoming orientation
- Film material, width, roll core, roll diameter, adhesion, and edge allowance
- Hot-wire or blade-cutting method and cut-length settings
- Conveyor working height, transfer direction, and line-control interfaces
- Guarding, electrical standard, HMI language, and shipping preparation
Packaging & Shipping
Film-roll supports, cutting assemblies, rollers, conveyors, and control components are secured against movement and contamination. The packing plan should also protect precision rollers and include lifting points suitable for the buyer’s unloading equipment and installation sequence.
Manufacturing & Quality Control
- Roller condition, parallelism, conveyor tracking, and film-path checks
- Verification of positioning, feed length, cutting sequence, sensors, and alarms
- Lamination trial for wrinkles, bubbles, edge alignment, and clean release
- Safety-interlock and emergency-stop testing around film and cutting mechanisms
- Setup records for the agreed glass and film combination
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on automatic film applicators for placing protective or process film on compatible flat panels. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include flat-glass and panel processing operations that require controlled film feeding, alignment, lamination, cutting, and discharge. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover panel size range, film type and width, feeding and cutting arrangement, conveyor height, alignment method, controls, guarding, and line interfaces. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for Full Automatic Film Applicator can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide panel material, minimum and maximum size, thickness, film roll specification, application side, edge allowance, target output, upstream and downstream layout, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Related Equipment
Browse Packaging Automation Equipment or review Ceramic Tile Packaging Production Line Solutions.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
