Roller Printing Machine
- Continuous roller transfer for repeating flat-glass patterns
- Four cataloged roller widths with adjustable conveyor speed
- Alignment correction, stacking alarm, and fault-diagnosis functions
-
Estimated Delivery:Jul 30 - Aug 03

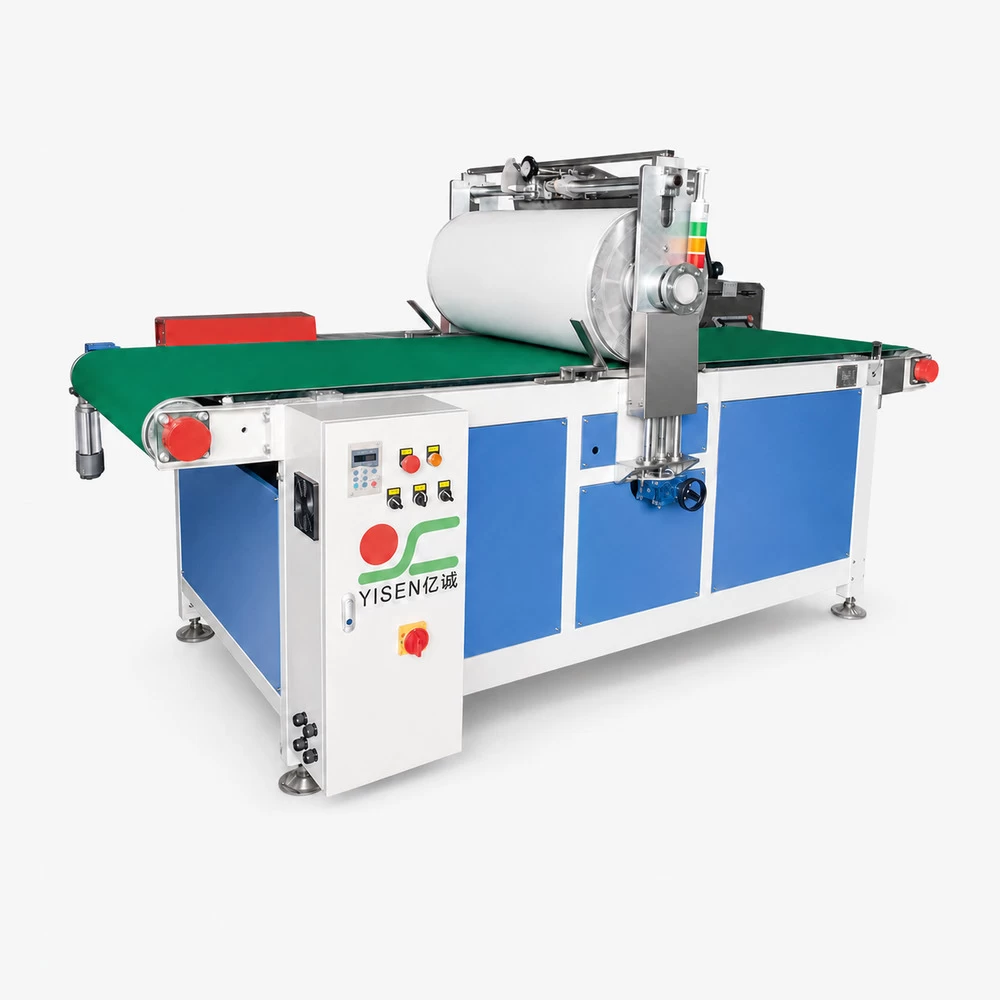

Roller Printing Machine
This glass roller printing machine transfers regular or irregular decorative patterns to flat panels in a continuous conveyor process. It is suited to production where a repeating roller pattern and steady material flow are more appropriate than a screen-printing cycle. The cataloged JYD range provides four roller widths with adjustable operating speed, automatic alignment and error-correction functions, stacking alarms, and fault self-diagnosis. Final selection should consider panel width, pattern repeat, ink or coating characteristics, required coverage, upstream cleaning, downstream drying, and how the printed glass will be inspected and stacked.

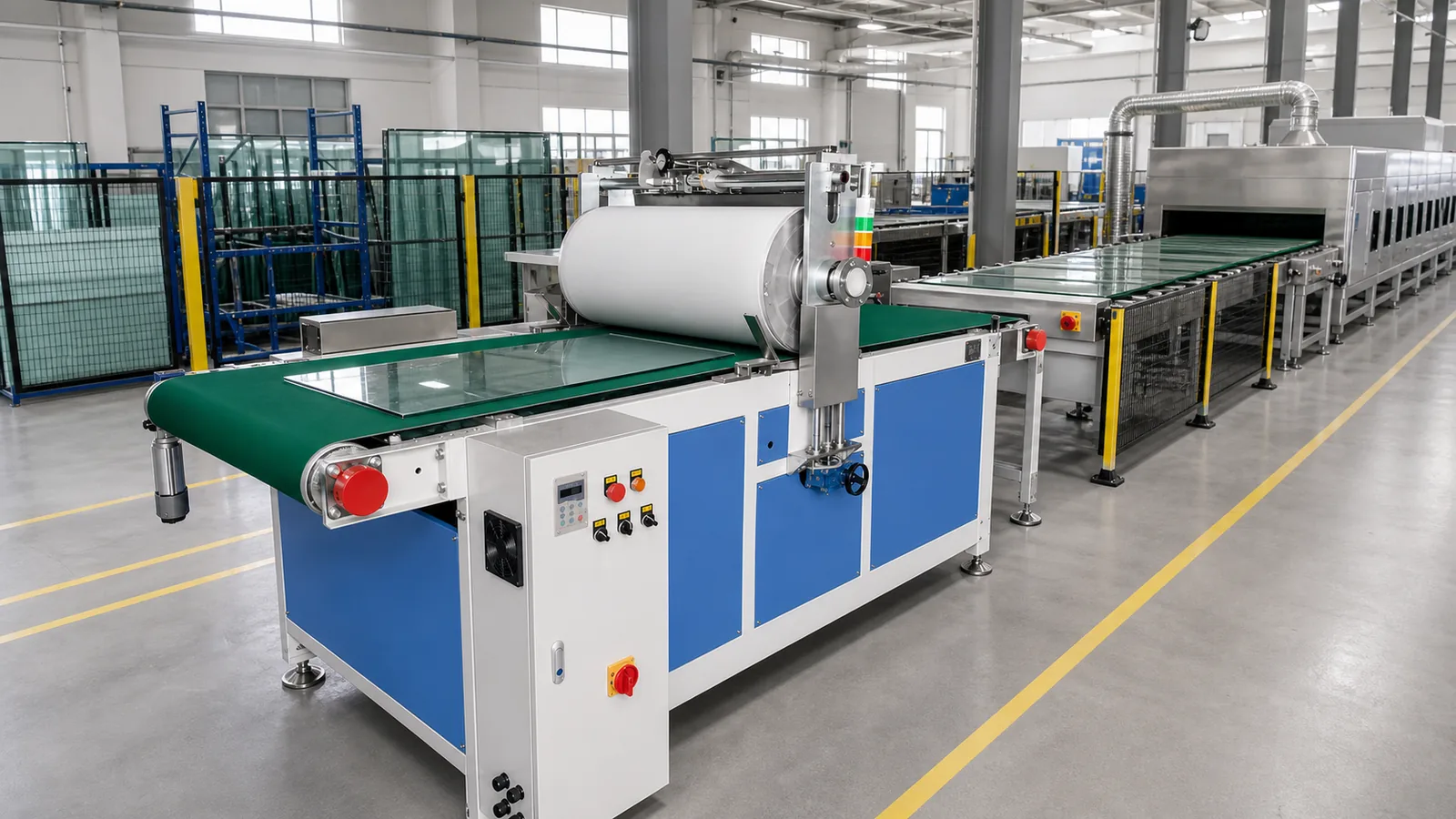

Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Four cataloged roller widths support different flat-glass product ranges.
Continuous belt transport is suited to repeating decorative patterns.
Automatic alignment and error correction help maintain panel tracking.
Adjustable operating speed supports coordination with surrounding equipment.
Stacking alarm functions assist with downstream material-flow monitoring.
Fault self-diagnosis provides operators with clearer troubleshooting information.
The line can be planned with upstream cleaning and downstream drying equipment.
Product Specifications
| Model | JYD08/23 | JYD10/23 | JYD13/23 | JYD15/23 |
|---|---|---|---|---|
| Catalog roller specification | Ø229 × 823 / Ø458 × 823 mm | Ø458 × 1,023 mm | Ø458 × 1,323 mm | Ø458 × 1,523 mm |
| Catalog speed | 10–50 pcs/min | 10–50 pcs/min | 10–50 pcs/min | 10–50 pcs/min |
| Installed power | 1.3 kW | 1.3 kW | 1.3 kW | 1.3 kW |
| Compressed air consumption | 5 L/min | 5 L/min | 5 L/min | 5 L/min |
| Working pressure | 1–4 bar | 1–4 bar | 1–4 bar | 1–4 bar |
| Machine dimensions | 1,420 × 1,250 × 1,480 mm | 1,420 × 1,250 × 1,480 mm | 1,420 × 1,250 × 1,480 mm | 1,420 × 1,250 × 1,480 mm |
| Approximate machine weight | 430 kg | 450 kg | 500 kg | 600 kg |
The catalog lists speed in pieces per minute. Actual output varies with panel length, spacing, pattern, coating behavior, inspection, and drying limits.
Applications
- Repeating decorative patterns on flat glass panels
- Furniture, appliance, interior, and architectural glass decoration
- Continuous production linked to cleaning and drying equipment
- Processes where roller patterning is more efficient than individual screen cycles
Customization Options
- Roller width, pattern design, and interface matched to the panel portfolio
- Belt width, working height, guides, and panel-alignment arrangement
- Ink or coating feed system based on the selected process
- Upstream cleaning, downstream dryer, inspection, and stacking connections
- Electrical controls, HMI language, guarding, and shipping package
Packaging & Shipping
The printing roller, feed components, conveyor, and control cabinet are protected against impact and movement during transport. Roller-surface protection, moisture control, crate construction, and lifting provisions should be agreed for the shipping route and destination handling method.
Manufacturing & Quality Control
- Roller runout, surface condition, belt tracking, and guide-alignment checks
- Verification of speed control, panel sensing, alarms, and fault display
- Coating-transfer setup review for the agreed roller and representative material
- Conveyor interface and downstream handoff checks when supplied as a linked cell
- Cleaning, maintenance, and roller-storage guidance for the final configuration
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on roller printing equipment for applying controlled coatings or patterns to compatible flat substrates. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include flat-glass coating and decoration processes where roller application is suitable for the selected ink or coating system. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover usable width, roller arrangement, conveyor height, coating supply, cleaning access, controls, guarding, and integration with upstream or downstream equipment. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for Roller Printing Machine can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide substrate type, minimum and maximum size, thickness, coating or ink data, coverage, finish target, line speed, cleaning requirements, layout, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Related Equipment
Browse Supporting Equipment or review Tunnel Drying Furnace.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
