Tunnel Drying Furnace
- Configurable conveyor drying for printed glass and panel lines
- Automatic temperature control with insulated tunnel construction
- Stainless-steel or PTFE-based conveyor options by process
-
Estimated Delivery:Jul 30 - Aug 03
Tunnel Drying Furnace
This tunnel drying furnace provides controlled conveyor drying or low-temperature curing for printed glass and other compatible panel products. It can be configured as a stand-alone dryer or connected to a screen printer, roller printer, inspection station, and unloading equipment. The catalog describes medium-wave heating tubes, automatic temperature control, insulated construction, and a conveyor selected from high-temperature stainless steel or PTFE-based material according to the process. Tunnel length, zone arrangement, temperature range, residence time, installed power, exhaust, and working width are engineered from the buyer’s ink data and production requirements.

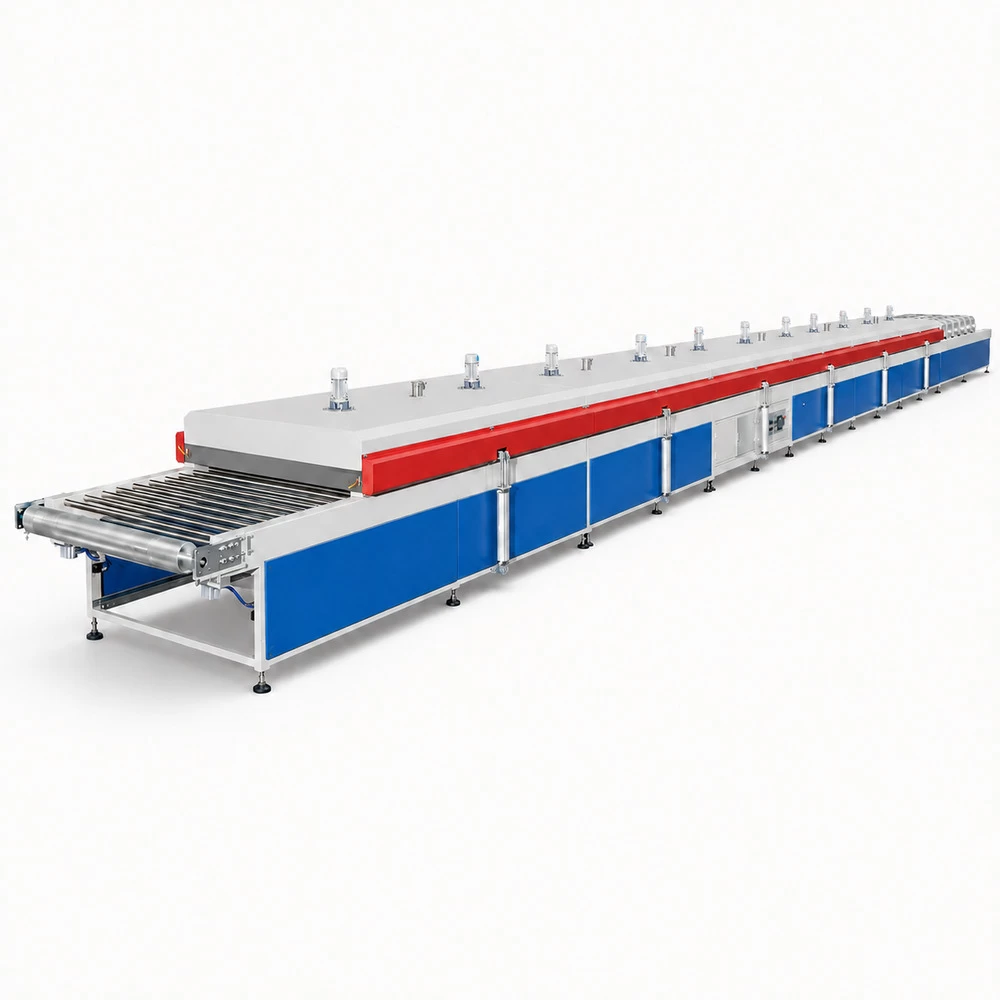

Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Project-specific tunnel length and working width match the panel range and residence time.
Medium-wave heating elements provide controllable process heat.
Automatic temperature regulation supports stable operating setpoints.
Insulated tunnel construction helps contain heat around the process zone.
Stainless-steel or PTFE-based conveyor materials can be reviewed for the application.
Line-ready conveyor interfaces can connect printing, inspection, and unloading equipment.
Heating zones, exhaust, and controls are configured from ink and substrate requirements.
Product Specifications
| Parameter | Configuration guidance |
|---|---|
| Compatible process | Drying or low-temperature curing of printed glass and compatible panels |
| Working width | Configured to maximum panel width and conveyor clearance |
| Heating system | Cataloged medium-wave heating tubes |
| Temperature control | Automatic thermostat and power control |
| Conveyor material | High-temperature stainless steel or PTFE-based material, process dependent |
| Tunnel length and zones | Calculated from temperature profile, residence time, and line speed |
| Installed power | Available upon request after thermal and throughput review |
| Exhaust and ventilation | Specified according to ink safety data and site requirements |
Obtain the ink supplier’s technical and safety data before selecting temperature, residence time, exhaust, and conveyor material. Final values must be approved for the actual substrate and coating.
Applications
- Drying screen-printed decorative glass
- Low-temperature curing of compatible inks or coatings on flat panels
- Continuous lines following screen or roller printing
- Stand-alone drying cells with manual or automated loading
Customization Options
- Working width, tunnel length, number of zones, and conveyor height
- Heating-element arrangement, insulation, temperature sensors, and controls
- Stainless-steel or PTFE-based conveyor selection
- Exhaust ports, airflow, cooling section, and site ventilation interface
- Infeed and outfeed handshakes, guarding, electrical standard, and documentation
Packaging & Shipping
Tunnel sections, conveyor modules, heaters, controls, and exhaust components are labeled and secured for transport. Packing and container loading are planned around module length, lifting access, corrosion protection, and the order in which sections will be installed at the destination.
Manufacturing & Quality Control
- Dimensional and conveyor-alignment checks across assembled tunnel sections
- Verification of heaters, sensors, thermostat control, and zone response
- Belt tracking, line-speed, interlock, and emergency-stop testing
- Temperature-uniformity and residence-time review under agreed trial conditions
- Documentation of electrical connections, maintenance access, and operating limits
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on tunnel drying furnaces configured for compatible printed or coated flat-glass processes. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include glass printing and coating lines that require controlled low-temperature drying or curing before handling or downstream processing. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover usable conveyor width, heated length, temperature zones, conveyor material, exhaust interface, line height, controls, guarding, and printer connection. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for Tunnel Drying Furnace can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide substrate size and thickness, ink or coating technical data, required temperature and residence time, incoming moisture or solvent load, line speed, available length, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
