YCS Series Automatic Screen Printing Machine
- Automatic XY centering for repeatable flat-glass registration
- Servo print motion with stored touchscreen production recipes
- Three cataloged formats for small to large glass panels
-
Estimated Delivery:Jul 30 - Aug 03

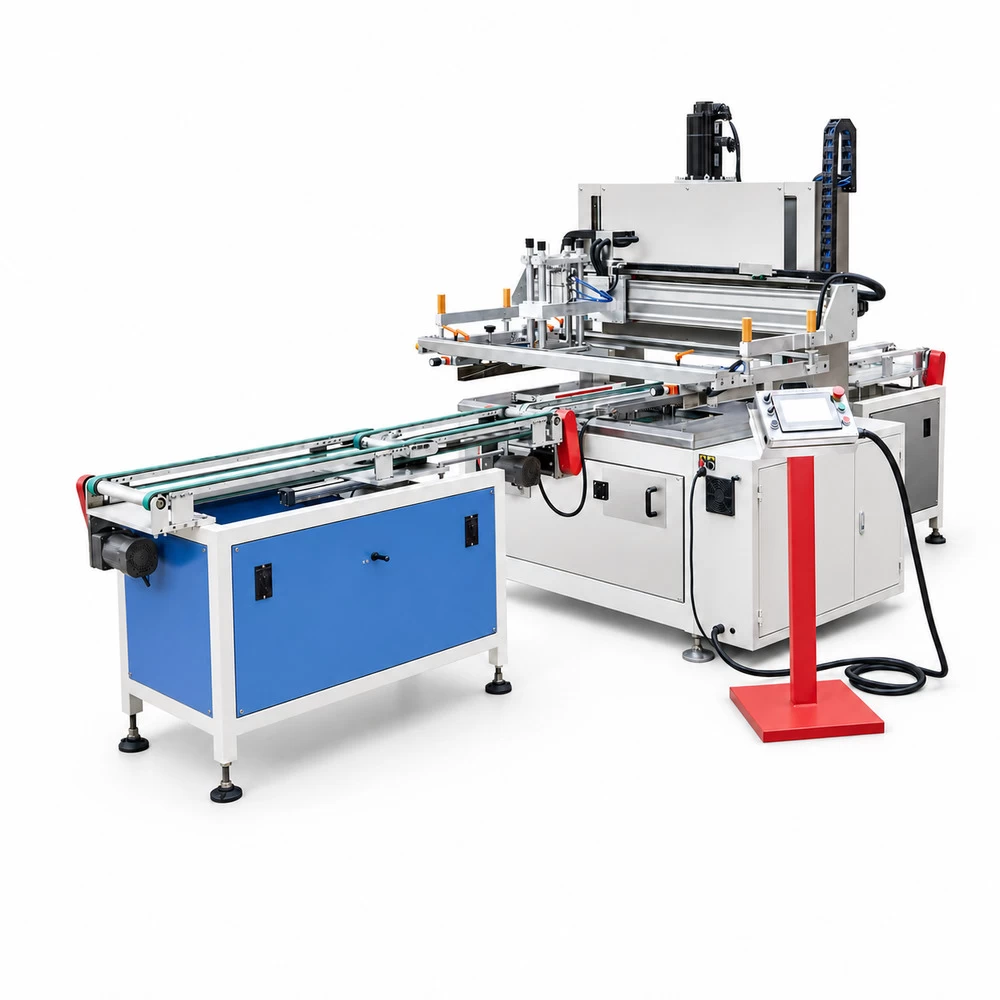

YCS Series Automatic Screen Printing Machine
The YCS Series automatic glass screen printing machine is designed for repeatable printing on flat glass panels where consistent registration and controlled material transfer are required. Automatic centering, recipe-based touchscreen control, servo-driven printing motion, and conveyor connections help the machine fit both stand-alone cells and linked production lines. Three cataloged size ranges cover small decorative panels through larger architectural glass formats. Final configuration should be matched to the substrate dimensions, glass thickness, ink system, required print area, curing method, and target production flow.
Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Automatic pre-positioning and XY centering compensate for normal incoming size variation.
Servo-driven print-head motion supports repeatable speed and stroke settings.
Touchscreen recipes store operating parameters for recurring jobs.
Telescopic conveyor connections simplify alignment with a compatible tunnel dryer.
Automatic fault guidance helps operators identify common setup and process interruptions.
Optional anti-drip and lifting-positioning functions can be reviewed for the selected process.
Product Specifications
| Model | YCS4060H | YCS6090H | YCS80120H |
|---|---|---|---|
| Glass size | 200 × 100 to 500 × 400 mm | 300 × 200 to 800 × 500 mm | 300 × 300 to 1,200 × 800 mm |
| Catalog throughput | 20–30 pcs/min | 15–25 pcs/min | 12–20 pcs/min |
| Maximum screen frame | 650 × 1,150 mm | 750 × 1,350 mm | 950 × 1,530 mm |
| Installed power | 1.5 kW | 1.5 kW | 1.5 kW |
| Compressed air consumption | 6 L/min | 6 L/min | 6 L/min |
| Working pressure | 5–6 bar | 5–6 bar | 5–6 bar |
| Machine dimensions | 1,180 × 1,880 × 1,450 mm | 1,280 × 2,080 × 1,450 mm | 1,280 × 2,270 × 1,450 mm |
| Approximate machine weight | 550 kg | 600 kg | 650 kg |
Catalog values describe standard reference configurations. Throughput depends on glass size, artwork, ink behavior, loading method, inspection steps, and downstream curing.
Applications
- Decorative and functional printing on flat glass panels
- Architectural glass, appliance panels, furniture glass, and interior partitions
- Single-color printing cells connected to inspection or drying equipment
- Repeat production requiring stored recipes and controlled registration
Customization Options
- Working format and conveyor height matched to the buyer’s glass range
- Screen-frame interface, squeegee setup, and centering arrangement
- Infeed, outfeed, inspection, and tunnel-dryer integration
- Electrical standard, HMI language, guarding, and factory-layout requirements
- Packaging method and lifting points for destination-site handling
Packaging & Shipping
Before shipment, the machine can be prepared as separate secured modules with vulnerable assemblies protected against movement and moisture. Export packing, container loading, lifting access, and destination requirements should be confirmed after the final layout and machine configuration are approved.
Manufacturing & Quality Control
- Configuration review against substrate size, print area, ink, and curing process
- Mechanical assembly and conveyor-alignment checks before trial operation
- Verification of centering, print stroke, recipe recall, sensors, and safety interlocks
- Trial printing with buyer-supplied or representative material when arranged
- Operating guidance, setup records, manuals, and spare-parts planning based on the order scope
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on automatic and semi-automatic glass screen printing equipment, including the YCS automatic model shown on this page. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include architectural glass, appliance panels, furniture glass, interior glass, and other flat-glass decoration operations. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover working format, conveyor height, centering arrangement, screen-frame interface, electrical standard, guarding, HMI language, and connection to a compatible dryer. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for YCS Series Automatic Screen Printing Machine can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide minimum and maximum glass size, thickness, print area, screen-frame size, ink and curing method, target output, line direction, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
