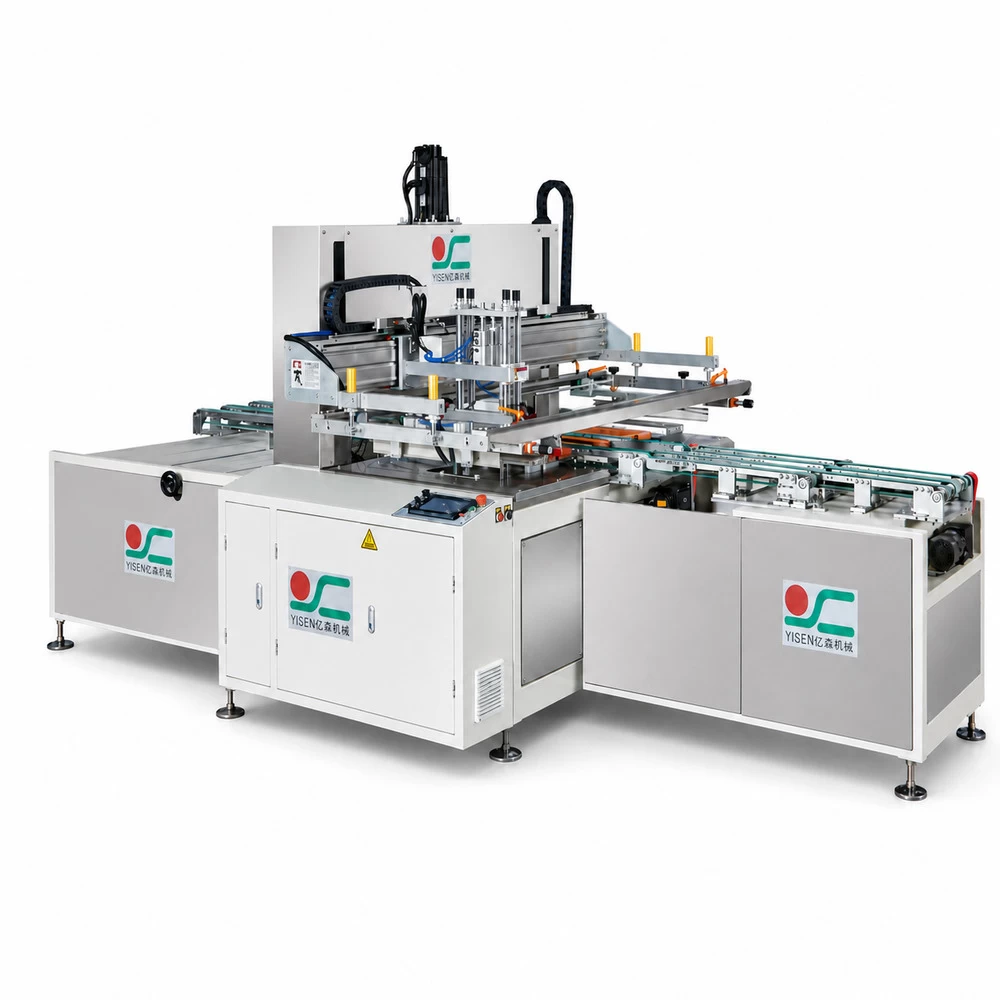

YCS Series Integrated Automatic Screen Printing Machine
- Coordinated transfer, centering, printing, and outfeed in one cell
- Recipe-based servo control for repeat glass production
- Custom interfaces for washers, inspection stations, and tunnel dryers
-
Estimated Delivery:Jul 30 - Aug 03
YCS Series Integrated Automatic Screen Printing Machine
The YCS Series integrated automatic screen printing machine combines glass transfer, centering, printing, and downstream connection in one coordinated cell. It is intended for buyers who want fewer manual handoffs between process steps while retaining recipe control for recurring glass formats. Servo-driven printing and lifting motions, touchscreen parameter storage, automatic guidance, and telescopic dryer connection support consistent line operation. The cell should be engineered around the buyer’s actual panel sizes, glass thickness, loading orientation, screen frames, ink system, inspection plan, curing equipment, and available floor space.
Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Integrated infeed, centering, printing, and outfeed sequence reduces manual transfers.
Automatic XY positioning supports consistent glass placement before each print cycle.
Servo-controlled print and lifting axes allow repeatable recipe settings.
Touchscreen controls store job parameters and display operating guidance.
Telescopic transfer sections support a practical connection to compatible curing equipment.
Multiple format ranges allow the cell to be matched to the buyer’s product mix.
Optional anti-drip and positioning functions can be specified after ink-process review.
Product Specifications
| Reference model | YCS4060H | YCS6090H | YCS80120H |
|---|---|---|---|
| Glass size | 200 × 100 to 500 × 400 mm | 300 × 200 to 800 × 500 mm | 300 × 300 to 1,200 × 800 mm |
| Catalog throughput | 20–30 pcs/min | 15–25 pcs/min | 12–20 pcs/min |
| Maximum screen frame | 650 × 1,150 mm | 750 × 1,350 mm | 950 × 1,530 mm |
| Installed power | 1.5 kW | 1.5 kW | 1.5 kW |
| Working pressure | 5–6 bar | 5–6 bar | 5–6 bar |
| Machine dimensions | 1,180 × 1,880 × 1,450 mm | 1,280 × 2,080 × 1,450 mm | 1,280 × 2,270 × 1,450 mm |
| Approximate machine weight | 550 kg | 600 kg | 650 kg |
The model data is drawn from the YCS catalog range. Integrated-cell dimensions and interfaces change with loading, inspection, transfer, and dryer requirements.
Applications
- Automated decoration of appliance, furniture, and architectural glass
- Glass printing cells with limited manual loading between process steps
- Repeat jobs requiring stored settings for several panel formats
- Lines connecting printing with inspection and low-temperature curing
Customization Options
- Infeed direction, conveyor height, transfer length, and buffer arrangement
- Working format, screen frame, centering method, and print-head setup
- Connection to washers, inspection tables, dryers, or unloading equipment
- Control handshakes, electrical standard, HMI language, and safety guarding
- Crating and modular disassembly plan based on the shipping route
Packaging & Shipping
The integrated cell is divided into transportable modules after its interfaces are documented. Conveyors, sensors, print assemblies, and control components are secured separately as needed, with packing selected according to container loading, route, and destination handling conditions.
Manufacturing & Quality Control
- Layout and interface review before fabrication of line-specific transfer sections
- Assembly checks for conveyor alignment, centering motion, print stroke, and lifting axes
- Control-sequence testing from infeed detection through outfeed release
- Verification of stored recipes, alarm guidance, sensors, and safety functions
- Optional sample trials using representative panels and agreed ink-process conditions
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on integrated automatic glass screen printing cells that combine transfer, centering, printing, and downstream equipment connections. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include architectural glass, appliance panels, furniture glass, decorative glass, and production lines that require coordinated material transfer. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover infeed and outfeed direction, conveyor length and height, working format, screen interface, inspection position, dryer connection, controls, guarding, and HMI language. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for YCS Series Integrated Automatic Screen Printing Machine can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide glass size and thickness range, loading direction, print area, artwork and screen data, ink and curing method, target output, adjoining equipment, floor plan, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
