YSC Series Semi-Automatic Screen Printing Machine
- Operator-controlled loading with automated printing motion
- Three formats for compact panels through larger flat glass
- Adjustable drive, belt transfer, and pneumatic lifting system
-
Estimated Delivery:Jul 30 - Aug 03

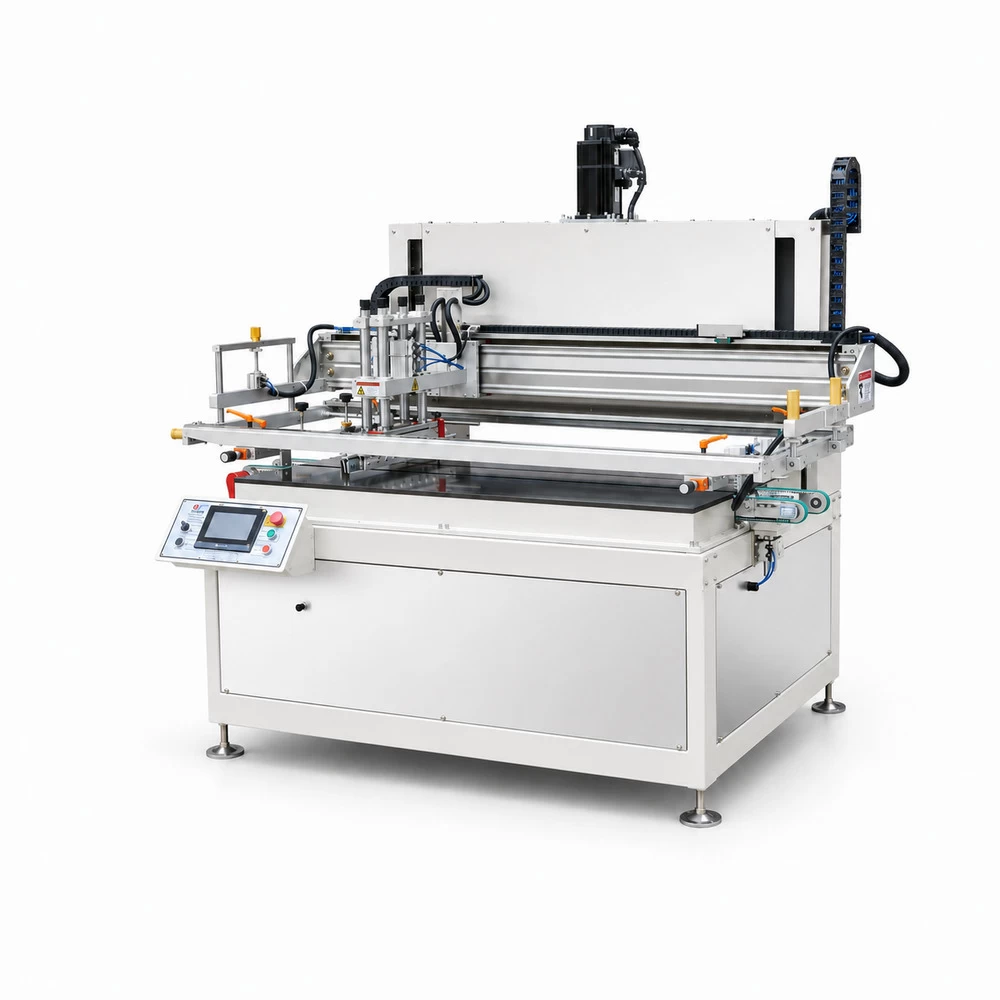

YSC Series Semi-Automatic Screen Printing Machine
The YSC Series semi-automatic glass screen printing machine is intended for batch production where an operator loads or initiates the cycle while the machine controls printing motion. It is a practical choice for electrical panels, decorative glass, and other work that requires accurate placement without a fully automated material-handling line. The cataloged range covers compact panels through formats up to approximately 1,200 × 600 mm. Foot control, adjustable print settings, stepper-driven belt transfer, and pneumatic lifting support flexible operation and relatively quick format changes.
Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Semi-automatic operating sequence keeps loading and inspection under operator control.
Foot operation allows the operator to initiate cycles while handling the substrate.
Variable-frequency print-head drive provides adjustable printing motion.
Stepper-driven belt transfer supports controlled panel movement.
Pneumatic lifting provides a simple, serviceable vertical motion system.
Multiple configurations cover compact control panels through larger flat glass.
Catalog guidance indicates format changes can be completed in about 15 minutes under suitable conditions.
Product Specifications
| Model | YSC46 | YSC6090 | YSC60120 |
|---|---|---|---|
| Glass size | 100 × 100 to 250 × 300 mm | 200 × 100 to 900 × 600 mm | 300 × 100 to 1,200 × 600 mm |
| Catalog throughput | 10–20 pcs/min | 10–20 pcs/min | 6–10 pcs/min |
| Maximum screen frame | 650 × 900 mm | 900 × 1,650 mm | 900 × 1,830 mm |
| Installed power | 1.5 kW | 1.5 kW | 1.5 kW |
| Compressed air consumption | 5 L/min | 5 L/min | 5 L/min |
| Working pressure | 5–8 bar | 5–8 bar | 5–8 bar |
| Machine dimensions | 1,180 × 990 × 1,450 mm | 2,200 × 1,180 × 1,450 mm | 2,500 × 1,180 × 1,450 mm |
| Approximate machine weight | 350 kg | 450 kg | 450 kg |
The YSC60120 maximum glass dimension is presented as 1,200 × 600 mm based on the catalog table. Confirm the final usable print area and frame clearance for the selected artwork.
Applications
- Electrical control-panel and appliance-glass printing
- Decorative flat glass for furniture and interior products
- Small and medium batches with manual inspection between cycles
- Production environments with frequent artwork or format changes
Customization Options
- Working size, screen frame, squeegee, and substrate stop arrangement
- Belt and table configuration for the buyer’s glass handling method
- Control language, electrical standard, foot control, and safety devices
- Fixtures for repeat panels or application-specific positioning
- Packing, spare-parts kit, and operator-training scope
Packaging & Shipping
The machine is secured with the print assembly, transfer section, control components, and exposed fittings protected for transportation. Crate style, corrosion protection, container loading, and unloading access are selected after the destination and shipping method are confirmed.
Manufacturing & Quality Control
- Screen-frame fit, print travel, belt tracking, and pneumatic lift inspection
- Verification of foot control, emergency stop, sensors, and cycle sequence
- Adjustment checks for squeegee path, print speed, and substrate positioning
- Sample-print review when representative screens, ink, and panels are supplied
- Operator setup instructions and maintenance guidance based on the purchased configuration
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on semi-automatic flat-glass screen printing machines, including the YSC series shown on this page. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include decorative glass, appliance panels, furniture glass, signage glass, and flexible production where operators load and unload panels. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover working format, vacuum table or support arrangement, screen-frame interface, squeegee setup, electrical standard, guarding, HMI language, and accessories. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for YSC Series Semi-Automatic Screen Printing Machine can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide glass dimensions and thickness, print area, screen-frame size, ink type, loading method, target output, electrical requirements, optional accessories, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
