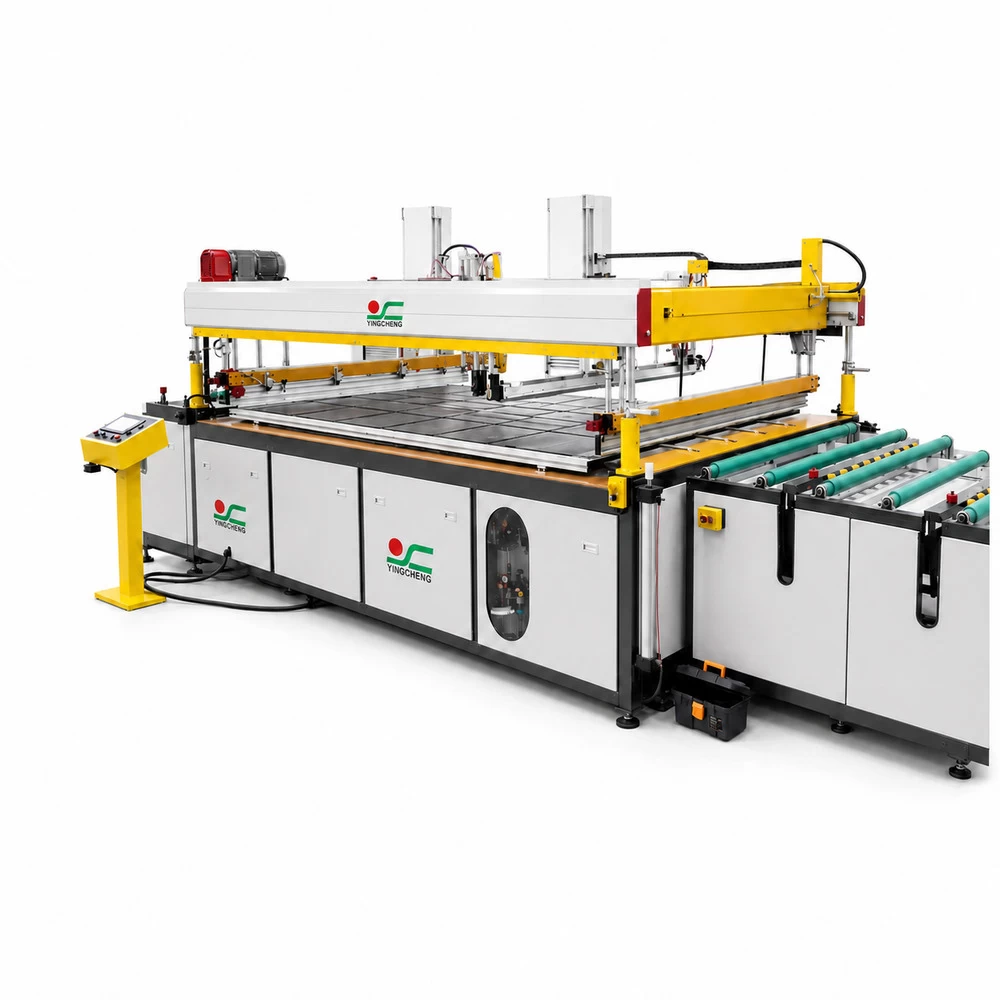

YCS Series Four Column Automatic Screen Printing Machine
- Four-column architecture for stable large-format glass printing
- Digital squeegee height, pressure, timing, and recipe control
- Cataloged formats up to 1,300 × 2,500 mm glass
-
Estimated Delivery:Jul 30 - Aug 03
YCS Series Four Column Automatic Screen Printing Machine
The YCS Series four-column automatic screen printing machine is built for large flat-glass formats that require a stable lifting structure and controlled printing settings. Its four-column architecture supports the screen and print assembly across a wide working area, while servo-driven lifting and printing motions provide adjustable, repeatable operation. Digital settings for squeegee height, pressure, and timing help operators document jobs and reproduce approved setups. Two cataloged configurations cover glass sizes up to 1,000 × 2,000 mm and 1,300 × 2,500 mm, subject to final print-area and screen-frame verification.
Illustrative application scene based on the product configuration; final line layout is project-specific.
Key Features
Four-column lifting architecture supports large screen frames and wide panels.
Automatic pre-positioning and XY centering assist large-glass registration.
Servo-driven lifting and printing motions provide controlled operating settings.
Digital squeegee height, pressure, and timing simplify documented setup.
Touchscreen recipes retain parameters for recurring large-format jobs.
Fault guidance helps operators locate common cycle interruptions.
Two reference configurations support different large-panel ranges.
Product Specifications
| Model | YSC200 | YCS250 |
|---|---|---|
| Glass size | 750 × 150 to 1,000 × 2,000 mm | 1,000 × 2,000 to 1,300 × 2,500 mm |
| Catalog throughput | 3–10 pcs/min | 3–10 pcs/min |
| Maximum screen frame | 1,500 × 2,800 mm | 1,800 × 3,350 mm |
| Installed power | 2.5 kW | 3.5 kW |
| Compressed air consumption | 6 L/min | 6 L/min |
| Working pressure | 5–8 bar | 5–8 bar |
| Machine dimensions | 3,450 × 2,500 × 1,750 mm | 4,050 × 2,900 × 1,750 mm |
| Approximate machine weight | 800 kg | 950 kg |
The catalog lists the smaller reference model as YSC200 within the YCS four-column series. Confirm model naming, usable print area, and screen-frame clearance on the final quotation.
Applications
- Large architectural glass and interior partition panels
- Decorative or functional printing on long and wide flat substrates
- Large-format work requiring stored squeegee and print settings
- Stand-alone cells or lines with large-panel transfer equipment
Customization Options
- Working range and screen-frame interface for the buyer’s largest panel
- Squeegee, flood bar, ink handling, and digital pressure setup
- Large-panel infeed, centering, inspection, and outfeed arrangement
- Working height, access platforms, guarding, and maintenance clearance
- Electrical standard, documentation, packing, and destination lifting plan
Packaging & Shipping
Large-format assemblies may be separated into documented modules for container transport. The four-column structure, print bridge, controls, and transfer sections are braced and protected according to the route, while installation access and lifting equipment are reviewed before shipment.
Manufacturing & Quality Control
- Structural, guide, and lifting-motion checks across the full working travel
- Verification of XY centering, print-head motion, and squeegee settings
- Screen-frame fit and working-clearance inspection for the selected model
- Safety-interlock, sensor, emergency-stop, and recipe-recall testing
- Representative large-panel trial planning when samples and process materials are supplied
Workshop equipment and production-floor view used to support assembly and process review.
Frequently Asked Questions
What products do you manufacture?
YISEN focuses on four-column automatic glass screen printing machines for controlled print-head movement and repeat flat-panel production. The exact machine or line scope is selected from the buyer’s substrate, process, layout, and integration requirements.
What industries use this equipment?
Typical users include architectural glass, appliance panels, furniture glass, decorative panels, and production requiring stable large-format screen support. Suitability should be confirmed with actual part drawings, materials, process data, and required output.
Do you offer customization or OEM/ODM services?
Custom options can cover working format, table and centering arrangement, screen frame, squeegee system, conveyor interface, electrical standard, controls, guarding, and dryer connection. OEM or ODM requirements should be defined in writing and reviewed against the final technical configuration.
Can packaging and shipment markings be customized?
Transport frames, crates, moisture protection, lifting access, labels, and shipment markings can be discussed after the machine layout and shipping route are confirmed. Any logo or special marking requirement should be included before packing approval.
Can you provide a product brochure or technical catalog?
An electronic brochure and available technical information for YCS Series Four Column Automatic Screen Printing Machine can be supplied during the inquiry. Ask for the latest revision and identify the models or process steps you need to compare.
What information is required for a quotation?
Please provide glass size and thickness range, print area, screen-frame dimensions, ink and curing process, loading method, output target, floor plan, utilities, and destination. The quotation is based on the approved scope and final specification rather than unverified assumptions.
Which Incoterms can be discussed?
EXW, FOB, CIF, or DDP arrangements can be reviewed depending on the destination, equipment scope, and available logistics service. The applicable Incoterm, named place, cost coverage, and responsibilities will be stated in the final quotation.
Where is your factory, and can buyers visit?
The factory is located at No. 2, 8th Road, West Area 2, Lianhe Industrial Zone, Luocun, Shishan Town, Nanhai District, Foshan, Guangdong, China. Buyers can request an appointment so the relevant equipment and technical staff can be scheduled.
Can you sign an NDA?
An NDA can be reviewed before the buyer shares confidential drawings, samples, or process information. Signature and information-handling requirements depend on acceptance of the final terms.
What documentation, training, and after-sales support are available?
The project scope may include operating manuals, electrical information, setup records, operation videos, remote training, commissioning support, and spare-parts planning. Confirm the required language, service location, response method, and included deliverables in the contract.
Request a Configuration Review
For a project-specific recommendation, send the information below. YISEN will review the operating range and propose a configuration based on the final specification rather than applying unverified standard assumptions.
- Product or substrate type
- Minimum and maximum dimensions
- Thickness and surface condition
- Application environment
- Required process or customization
- Estimated purchase quantity
- Packaging and shipping requirements
- Destination country and target schedule
